Description

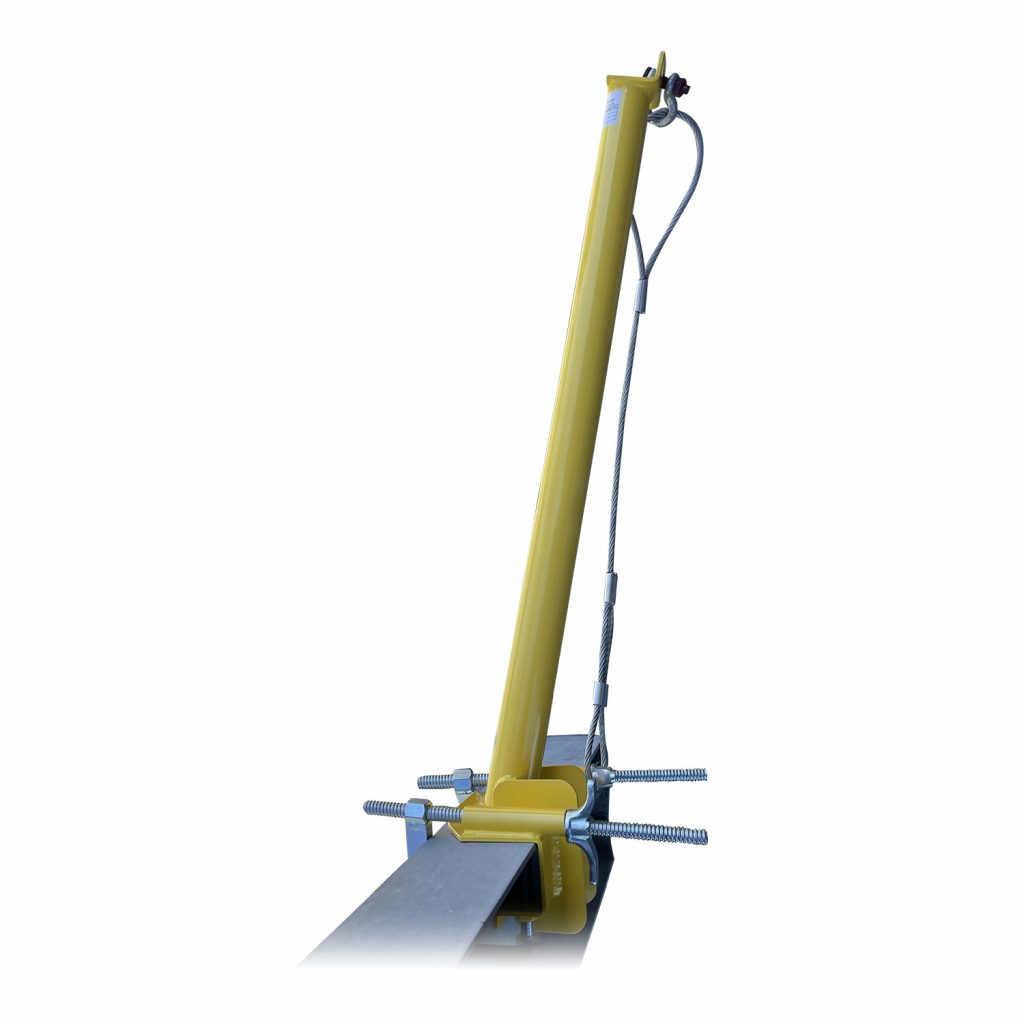

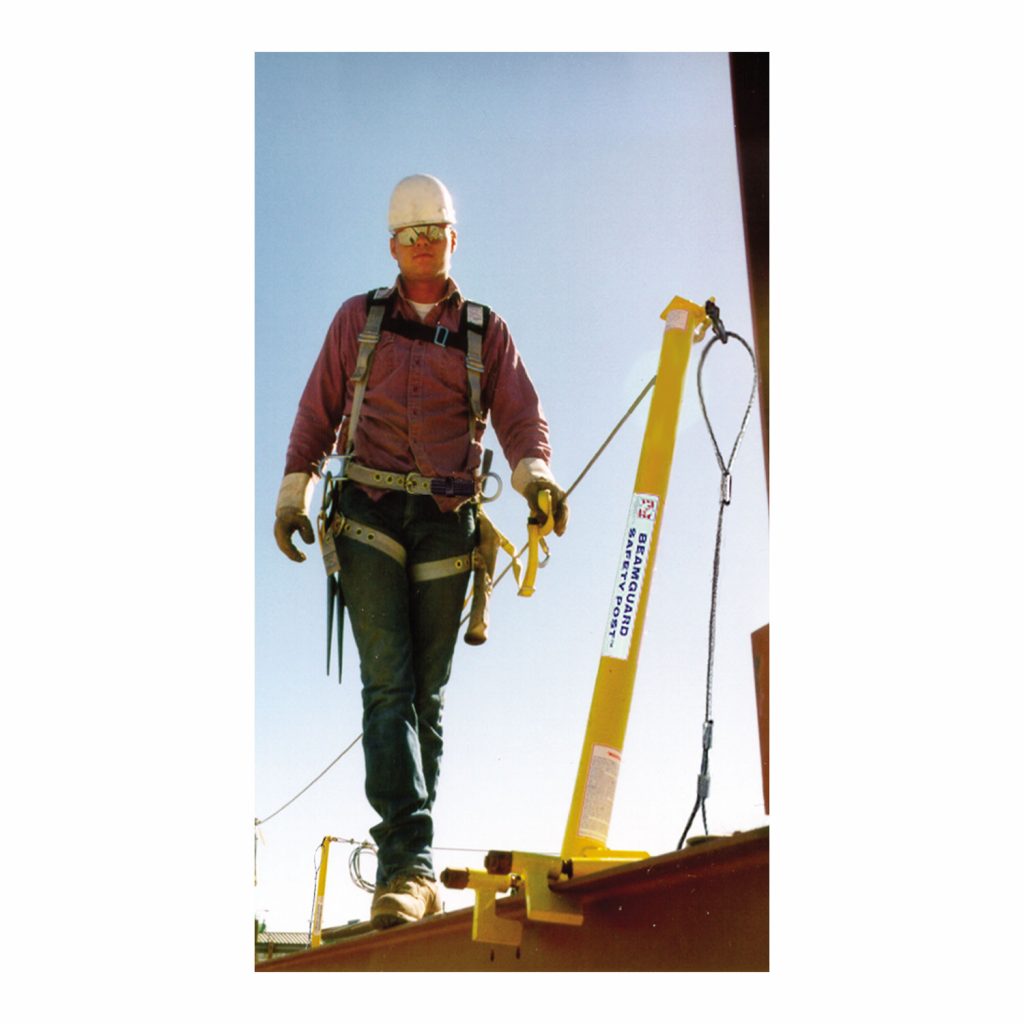

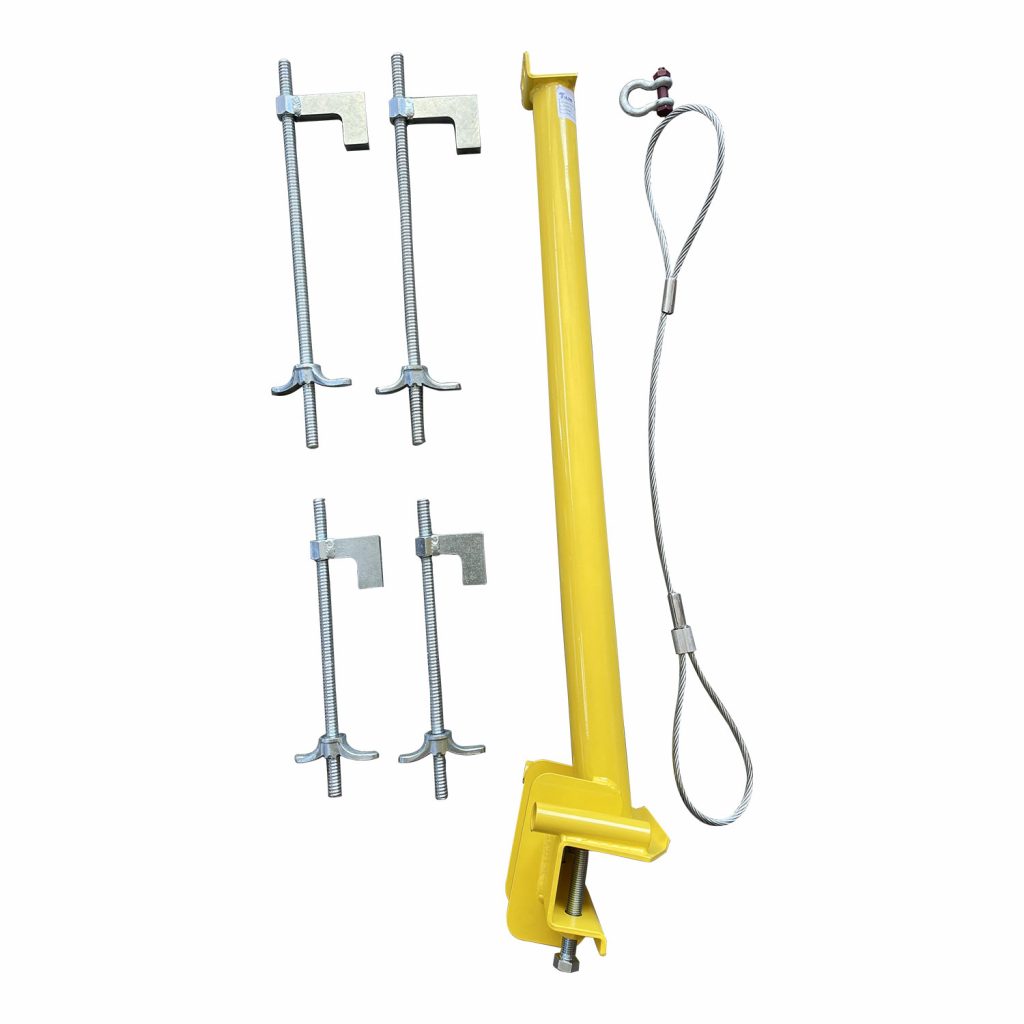

The Palmer Safety BeamGuard HLL Stanchion can be used in combination with any of Palmer Safety’s rope HLL kits and cable HLL kits. Able to accommodate up to two workers between each set of stanchions (maximum stanchion spacing is 60’), the BeamGuard has three base size options to allow for installation onto a variety of beam sizes. A Pass-Through Top Accessory is also available to facilitate 100% tie-off when transitioning between spans.
USER CAPACITY: 130 – 420 lbs
DESIGN:
- Durable and reusable
- Use in combination with rope or cable HLL system
- 300’ recommended maximum span length
- Install HLL system either parallel with or perpendicular to I-beam
MATERIAL: Powder-coated steel
MIN. BREAKING STRENGTH: 5000 lbs.
CONFORMS TO: Meets or Exceeds ANSI Z359.1-07, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
