Description

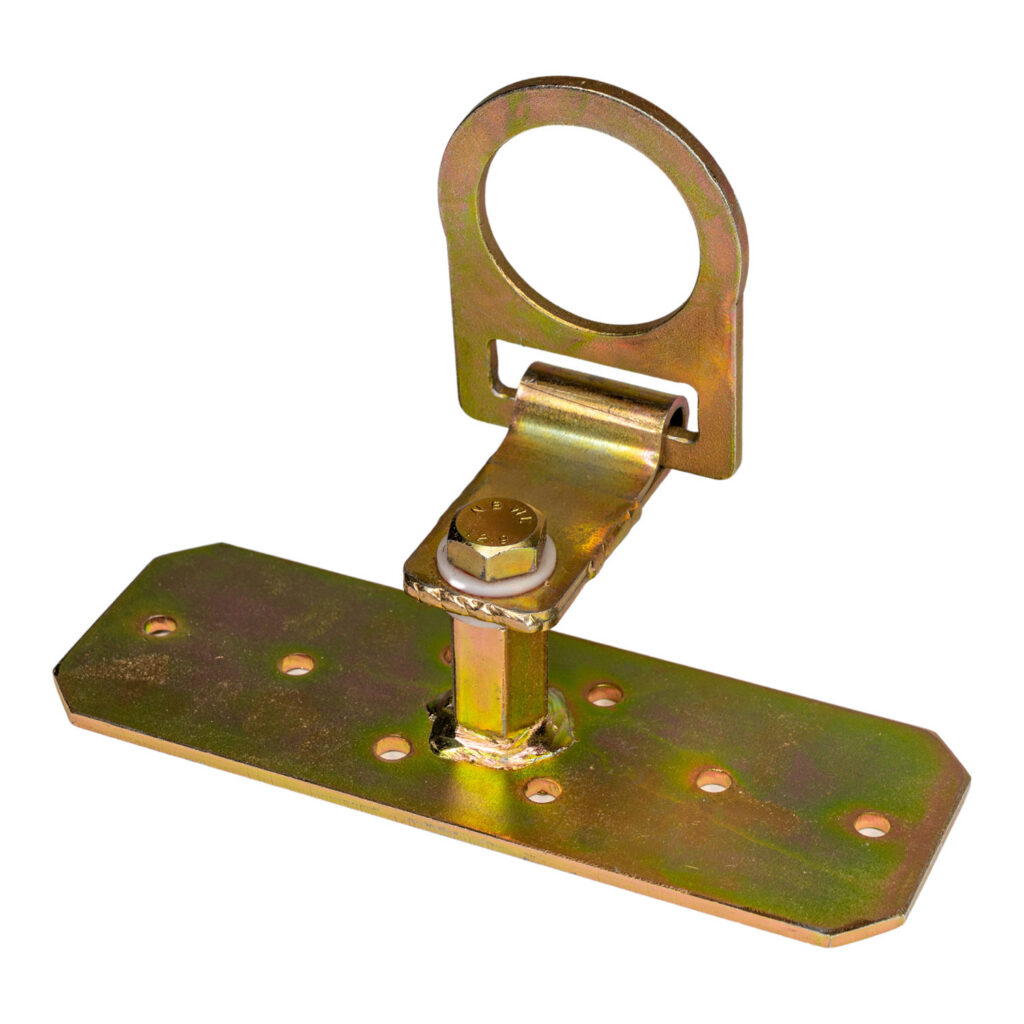

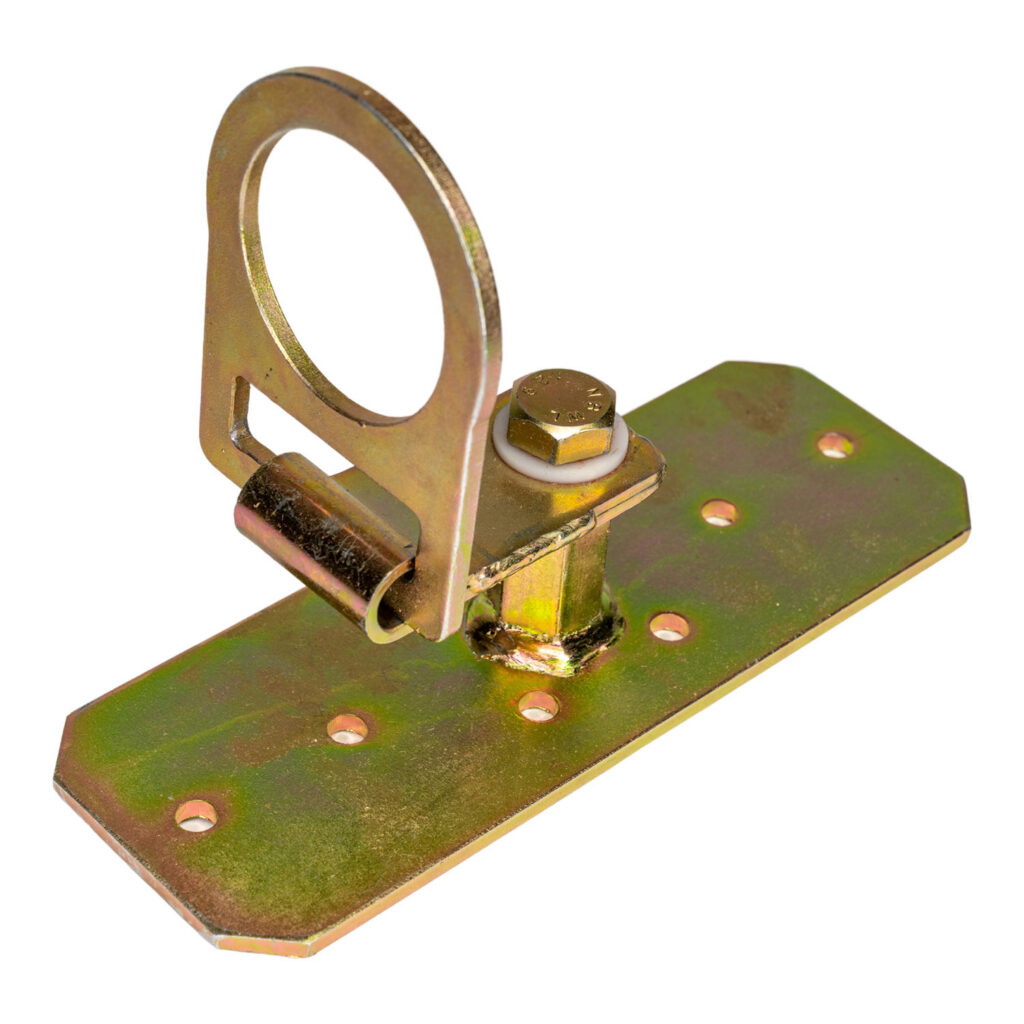

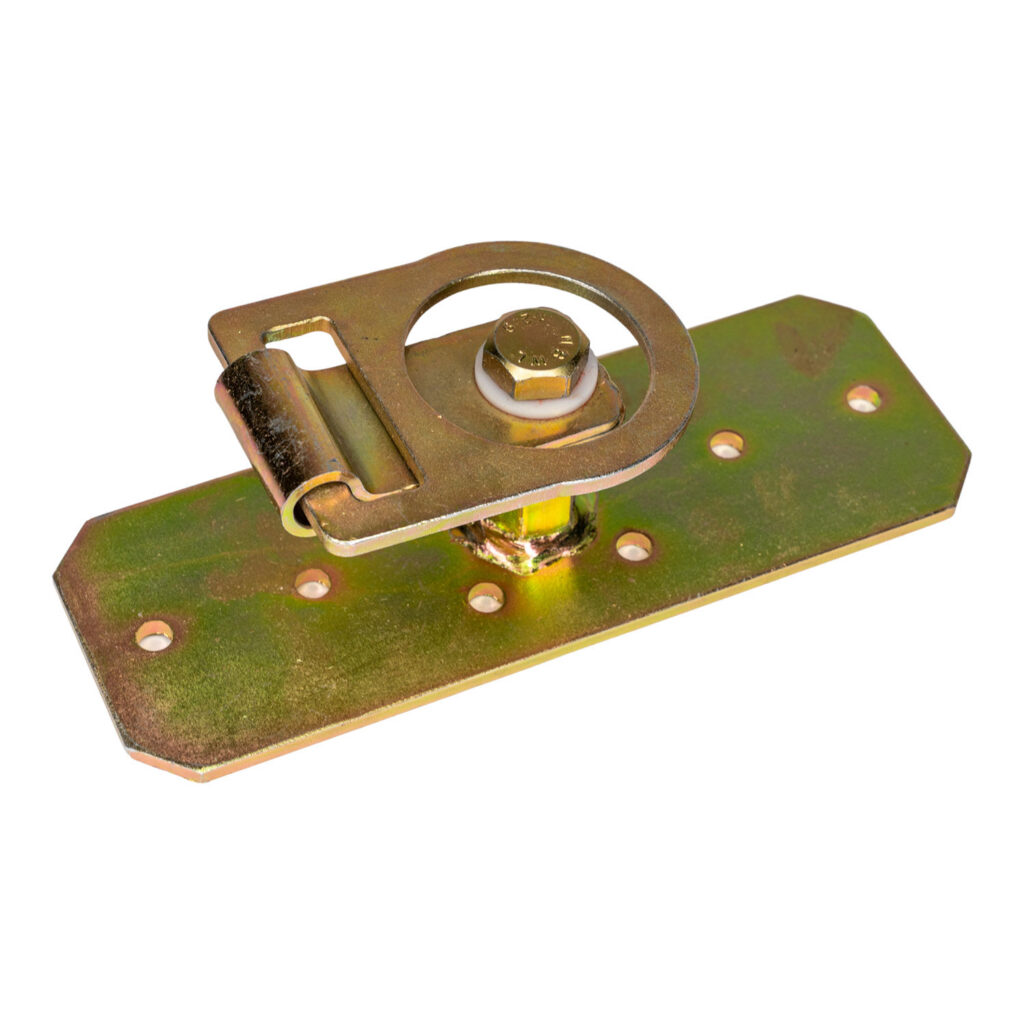

Palmer Safety’s ANCHORDRINGSW Metal Roof Swivel Anchor is a versatile fall protection solution for metal roofs. Its robust construction provides a secure anchor point for up to 5,000 lbs, while the swivel design allows for unrestricted movement and easy positioning. Ideal for both temporary and permanent applications, this anchor is a must-have for anyone working on metal roofs.
INCLUDED COMPONENTS:
- Versatile Design: Fits R-panel and standing seam roofs, connecting directly to the structural below.
- 360° Swivel and 180° D-Ring Flip: Ensures the anchor is always positioned correctly for maximum safety.
- High Working Load: Supports up to 5,000 lbs for secure anchorage.
- Durable Construction: Designed for long-lasting performance on metal roofs 22 gauge or thicker.
- Easy Installation: Includes self-drilling fasteners for quick and efficient setup.
- Removable and Reusable: Can be easily repositioned as needed for ongoing projects.
CAPACITY:
Maximum 1 connection per anchor
Worker Weight Range: 130 – 310 lbs. including all tools and equipment
MINIMUM BREAKING STRENGTH:
5000 lbs.; 3600 lb max. load
